Booster Pump System w/ 1 HP Shallow Well Pump, 20L Pressure Tank & Pre-Filter
Booster Pump System w/ 1 HP Shallow Well Pump, 20L Pressure Tank & Pre-Filter
Maximum Working Pressure: 45 psi
Maximum Flow Rate: 1200 GPH
MPN: Does not apply

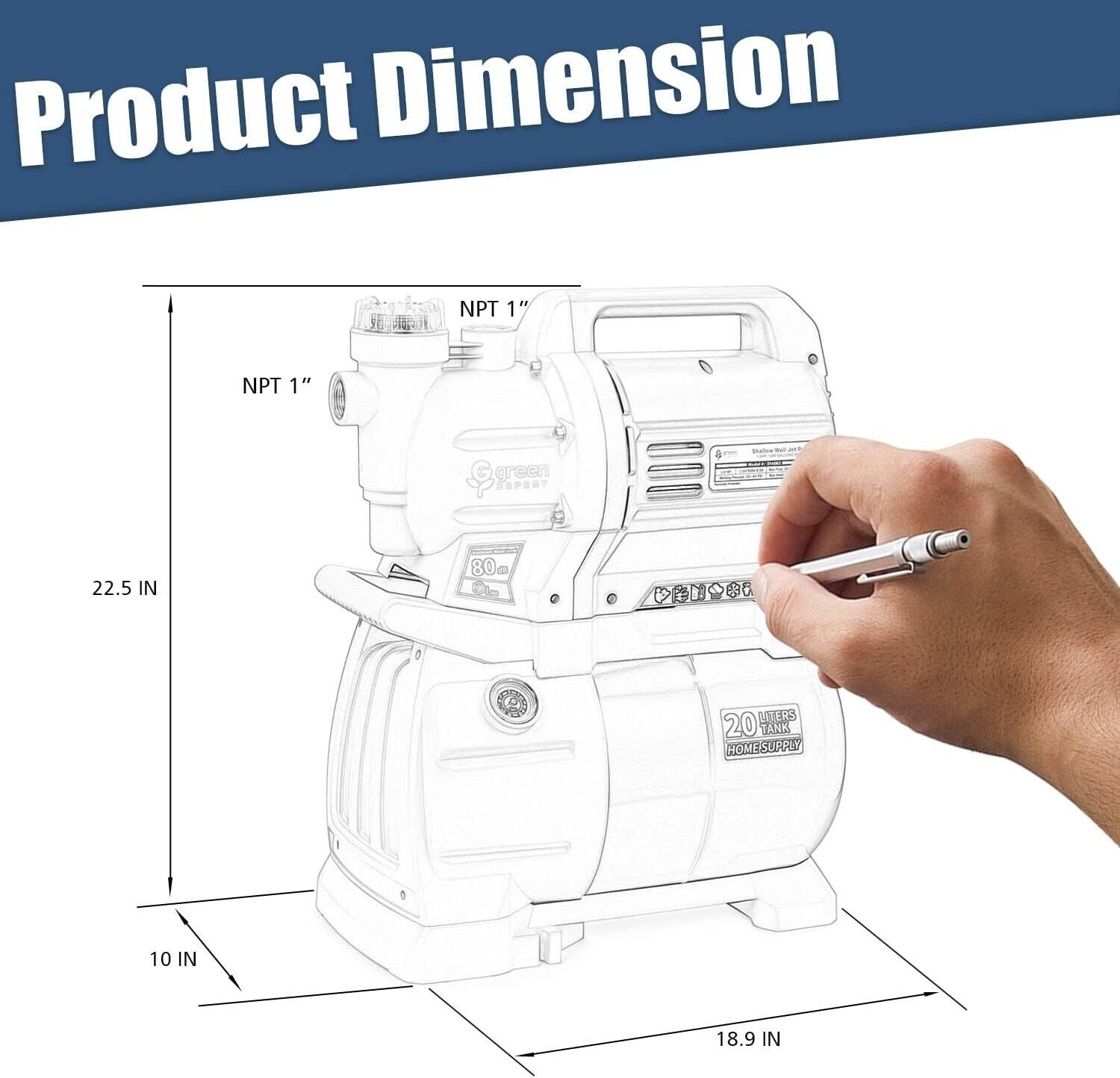

Item Length: 18.9 in
Brand: Green Expert
Type: Shallow Well Jet Pump
Horse Power: 1 HP
Manufacturer Warranty: 1 Year
Item Height: 22.5 in
Style: with Prefilter
Item Width: 10 in
Item Weight: 35 lb
UPC: Does not apply
Green Expert Well Pump Products
Green Expert 1.0HP Automatic Water Pressure Booster Pump Preset 20/45PSI
This water pump is featured by integrated water booster system that contains shallow well jet pump, water storage tank and the preset 20/45 pressure switch with pressure gauge for automatic&continuous high-pressure water delivery, and the unique prefilter design with transparent cap for water filtration and easy maintenance.
Green Expert strictly controls its reliable quality and efficienct performance as always and keeps effective improving for better experience it can do for our customers.

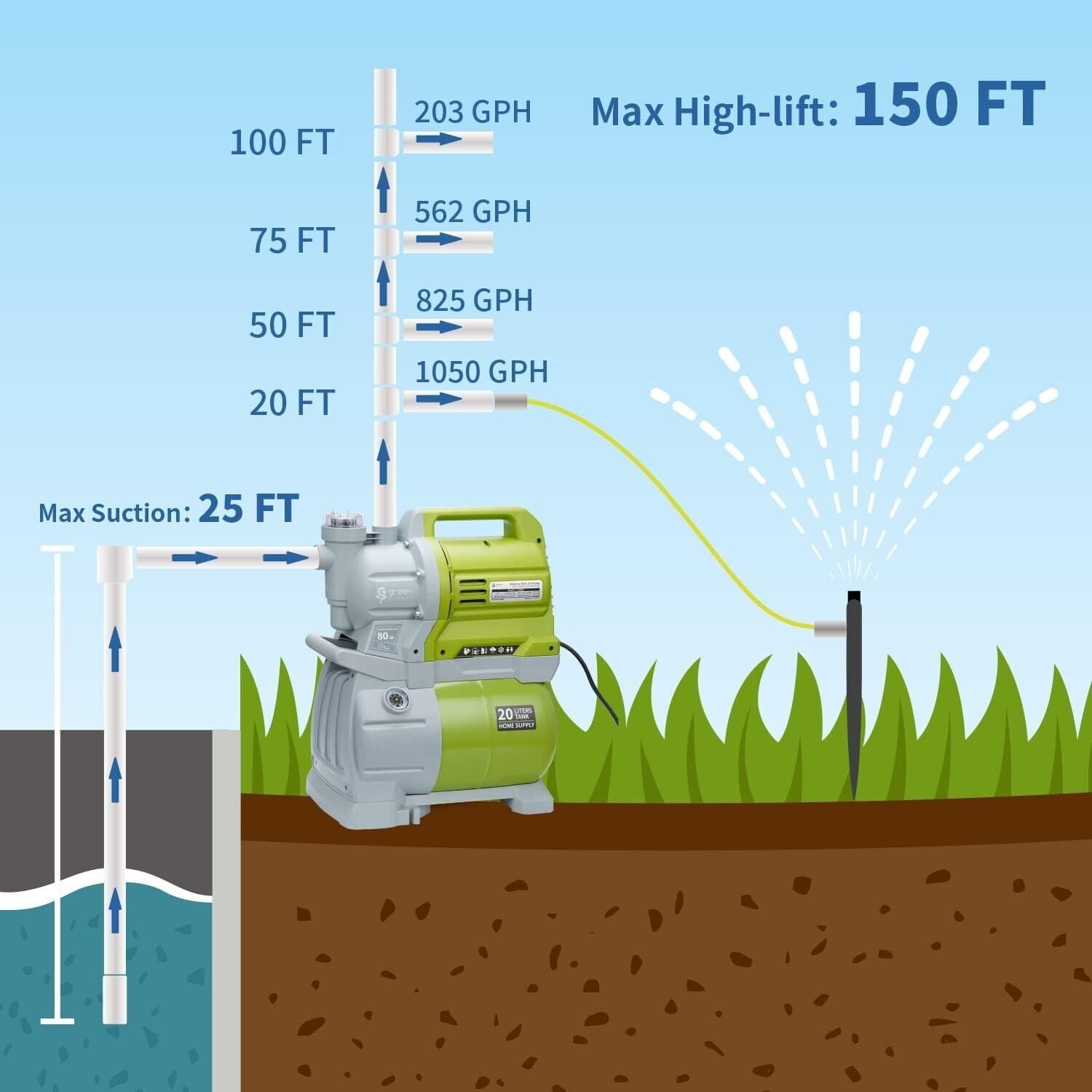

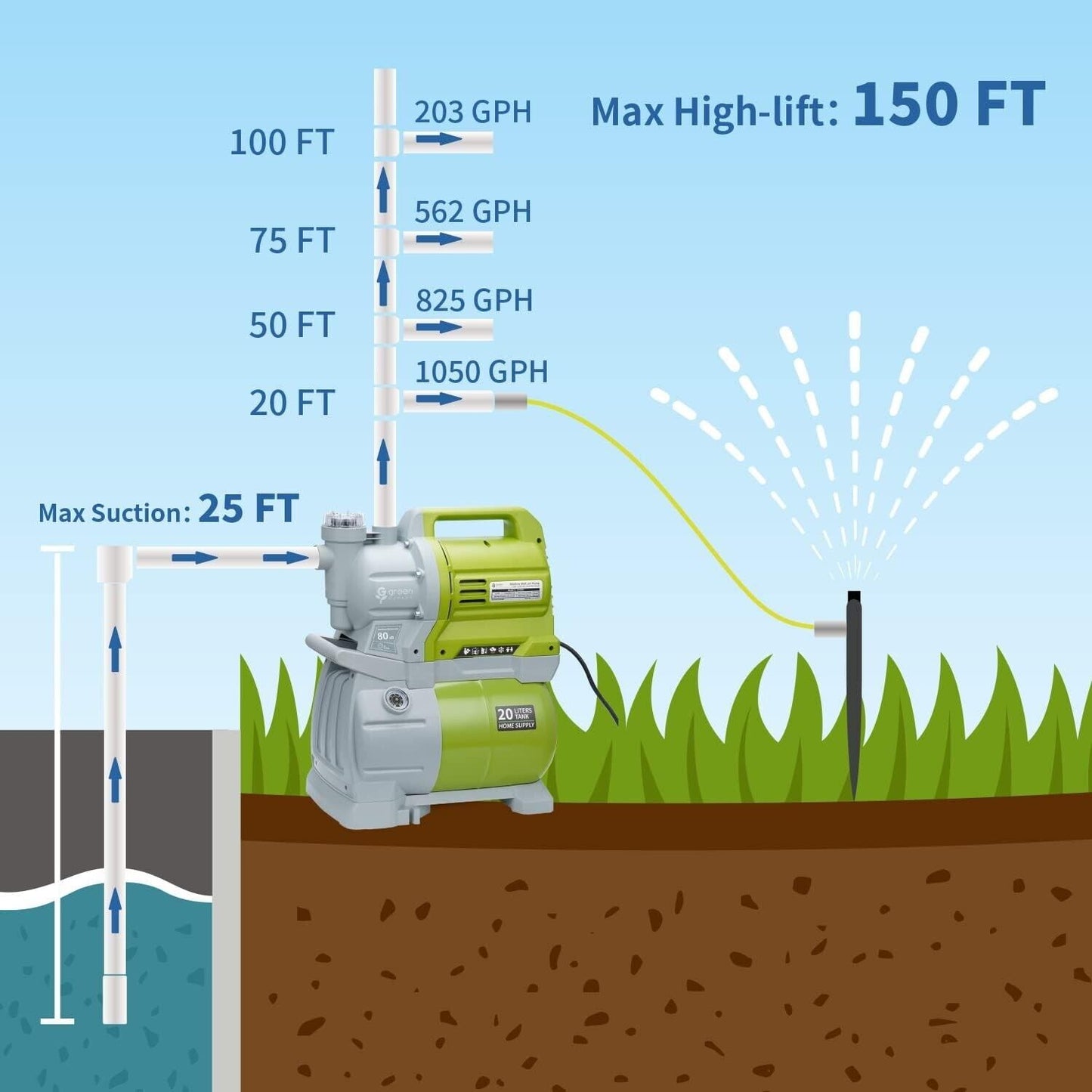

Now pump with 1.0HP PSC motor produces maximum flow rate of 1200 gallons per hour, has the ability to lift head to max. 100 feet@pressure 45psi that limited by automatic preset switch, jet pump itself has max 65psi pressure. It's designed for use where the suction lift is 25 feet or less. And work with CLEAN WATER under common power supply 110-120V/60Hz.
Pump has 1 inch NPT inlet/outlet and a quick start GHT adapter, and the lengthened 16 foot grounded power cord. It's perfect for household DIY installation.
This jet pump with 5.5Gal ( 20L ) pressure tank is designed to boost home water pressure or as a garden sprinkler pump. Whether you're in the shower or using the faucet, this powerful pressure booster will keep your water pressure going strong. Besides, it is also applied in irrigation for farmlands and barkyard, domestic well and water tower, as well as providing water for solar at high floors. *It's not certificated for pumping potable water.
Operation Warning: Please fully prime water into pump head and suction hose before use, and don't run the pump without water, dry running would trigger overload protector of motor and shorten the lifetime of pump.
Product Features
Simple to Install
Pump has 1 in. Npt discharge and 1 in. Suction for easy installation, an additional 3/4" GHT adapter attached in gift box for quick connection with garden hose.

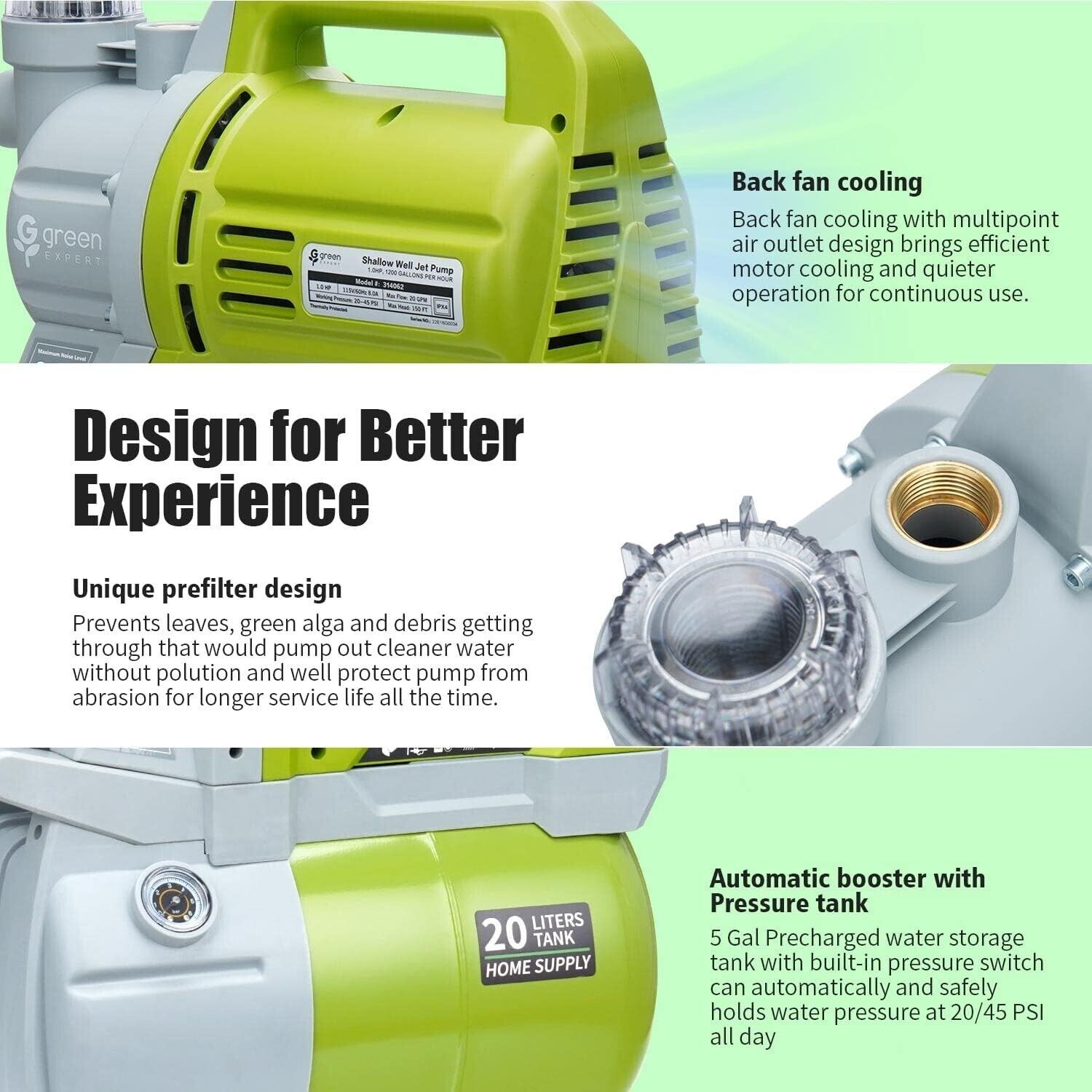

Unique Prefilter Design for Water Clean
This item is coupled with prefilter cup with 100 um filter net on pump head for water filtration, that would pump out cleaner water without polution and well-protect pump motor from abrasion for longer service lifetime all the time.
Automatic Water Pressure Boosting
5.5 Gal Water storage tank and preset 20/45 pressure switch with pressure gauge have been factory assembled in one integrated system and well-packed in the gift box, delivering full flow and pressure for whole house all day.
Simple Maintenance
Pump head with transparent cap can visually check the water quality. A spanner attached for easily opening&tightening the cap of filter makes pump maintenance(priming water or pump clean) more handy without trouble.
Handles Water as You Anticipated for All Needs!
How to Install a Booster System
Assemble A Suction Hose and Fill It with Water Before Attached to Pump
Before installation, prepare a suction hose or pipe with end valve. The end valve can prevent water out from hose inlet and simplify priming step for quick start in the future use, and tighten the hose connection with clamps in case of leakage.
Ensure Hose Not Blocked or Folded
The sizes of pump inlet&outlet are both 1 inch NPT. To avoid leakage from connection, please use teflon tape (included in box) to well seal the threads of connector.
Prime Water into Pump Head and Check Water can Spray Out or Not
If pump does not run, it's usually caused by air block. Please add more water into pump head, After that, confirm that power is on. Item will take seconds to release air inside and pump water out after a while.
Be free to require for assistance If you have any questions about the use of the product at anytime, we will actively deal with and solve your problems.
About Us
We, Tornado Tools, as a professional seller present Green Expert products for years, it's our greatest wish to make family life better!
Listening, learning and improving, be more professional as the GREEN EXPERT in the end, that's engraving to the soul of our brand concept.
We work absorbedly to perfect our products in silence for years, and let them just be our voices.
With this in mind, Tornado Tools deeply test and know how each and everyone of them works every time we develop a product.
Quality Control by Tornado Tools
100% Factory Tested
Every products of Green Expert would be inspected in laboratory before it's shipped out. With full of water in jet pump inside, inspectors can completely identify sources of defects, which can become potential leaks or wind noises, and ensure each one will work safely.
Caution: a few pump might have water inside the pump, or rust on surface of thread which is left from iron thread of test instrument. They can be easily cleaned and no affect for use. You can ask for the replacment if you mind it.
