Battery Disconnect Switch 1-2-Both-Off, DC 12V-48V Master Marine Battery Switch
Battery Disconnect Switch 1-2-Both-Off, DC 12V-48V Master Marine Battery Switch
Switch Type Kill Switch, Ignition Switch: Material Plastic, Copper

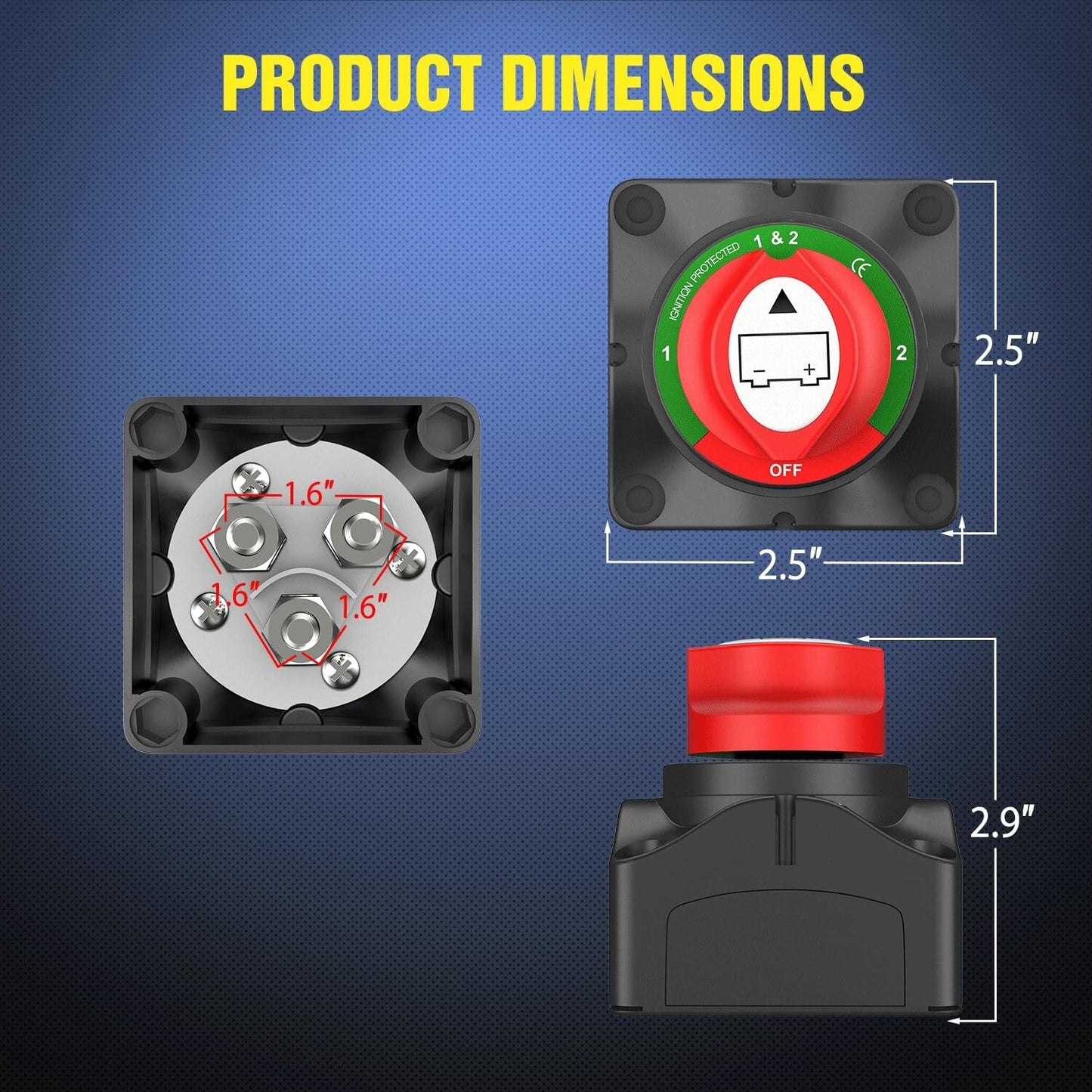

Item dimensions L x W x H: 3.15 x 2.76 x 2.76 inches
Size: 1-2-Both-Off
Actuator Type: Rotary
Item model number: ABT0004
Current Rating: 200 Amps
Contact Type: Normally Open
Product Dimensions: 3.15 x 2.76 x 2.76 inches; 1.6 ounces
Terminal: Marine
Operation Mode: 1-2-BOTH-OFF
Brand: Does not apply
Type: Does not apply
Operating Voltage: 48 Volts (DC)
Mounting Type Surface Mount: Specification Met CE
Connector Type: Screw
Circuit Type: 3-way
UPC: 7445040747714
Battery Cutoff Switch
Kill Swith for 2 Batteries
The switch does not have polarity, we recommend installing an in-line negative (-) cable to the battery.
Please make sure that the connected current is not higher than 200A continuous, once it exceeds 200A, the switch will burn out!
- Removable side pads
- 4 tined copper studs
- wiring diagram
1-2-Both-Off Battery Disconnect Switch
12-48 V Battery Cut Off Switch
Nilight battery switch help protects against electrical fires and theft when equipment is not in use, it also provides a reliable way to shut down electrical power during maintenance and protect batteries from excessive drain. and disconnect the battery safely.
Design for 2 batteries, can switch to battery 1 / battery 2 separately or both on and off together. Eliminate any power from the battery when the vehicle or boat is not in use, and disconnect the battery safely. Avoid battery drain off.
- Operation: 12V-48 VDC systems. Fit for Car, Vehicle, RV,Marine Boat and other electrical equipment

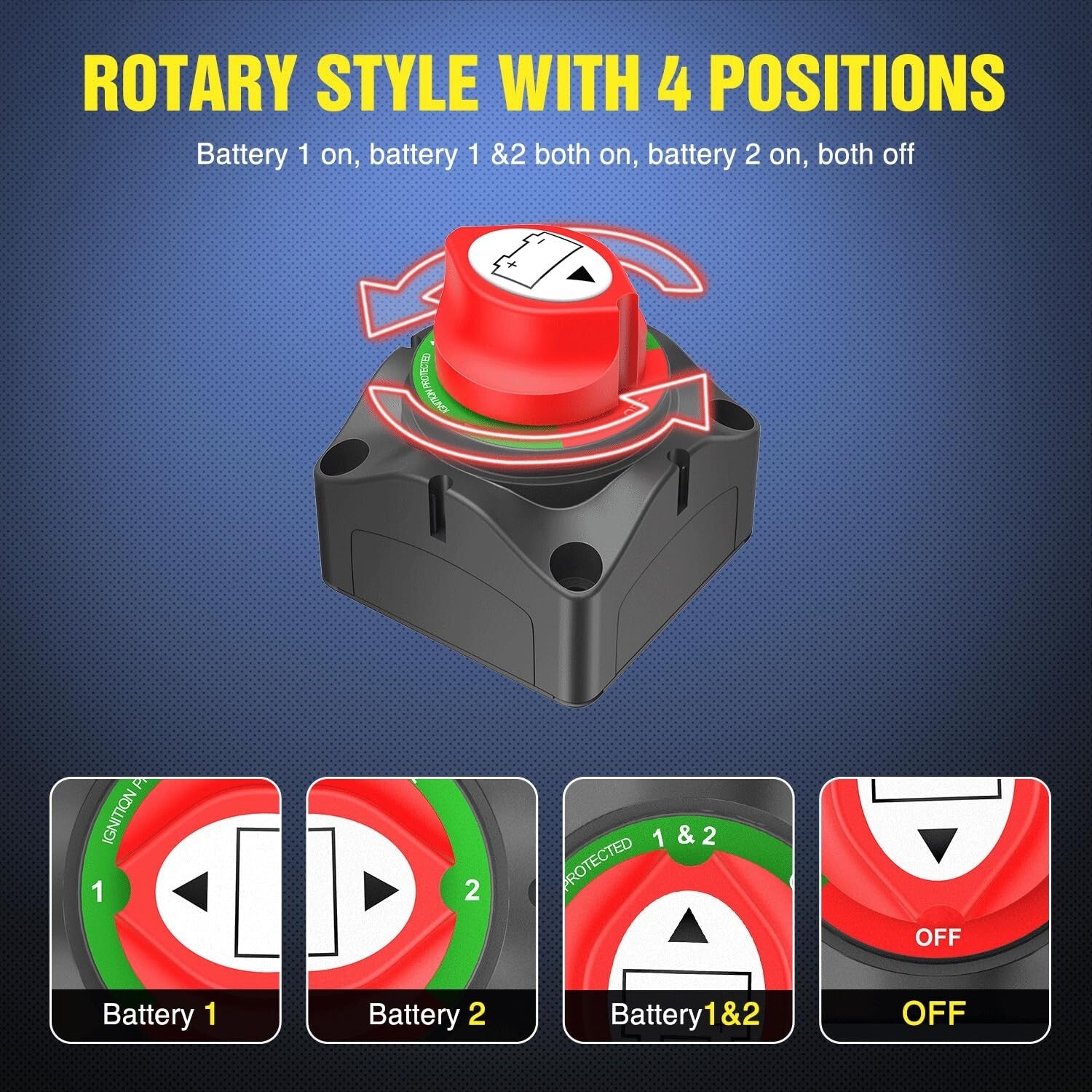

- 4 Position: Battery 1 on; Battery 2 on; Battery 1&2 both on; Battery 1&2 both off

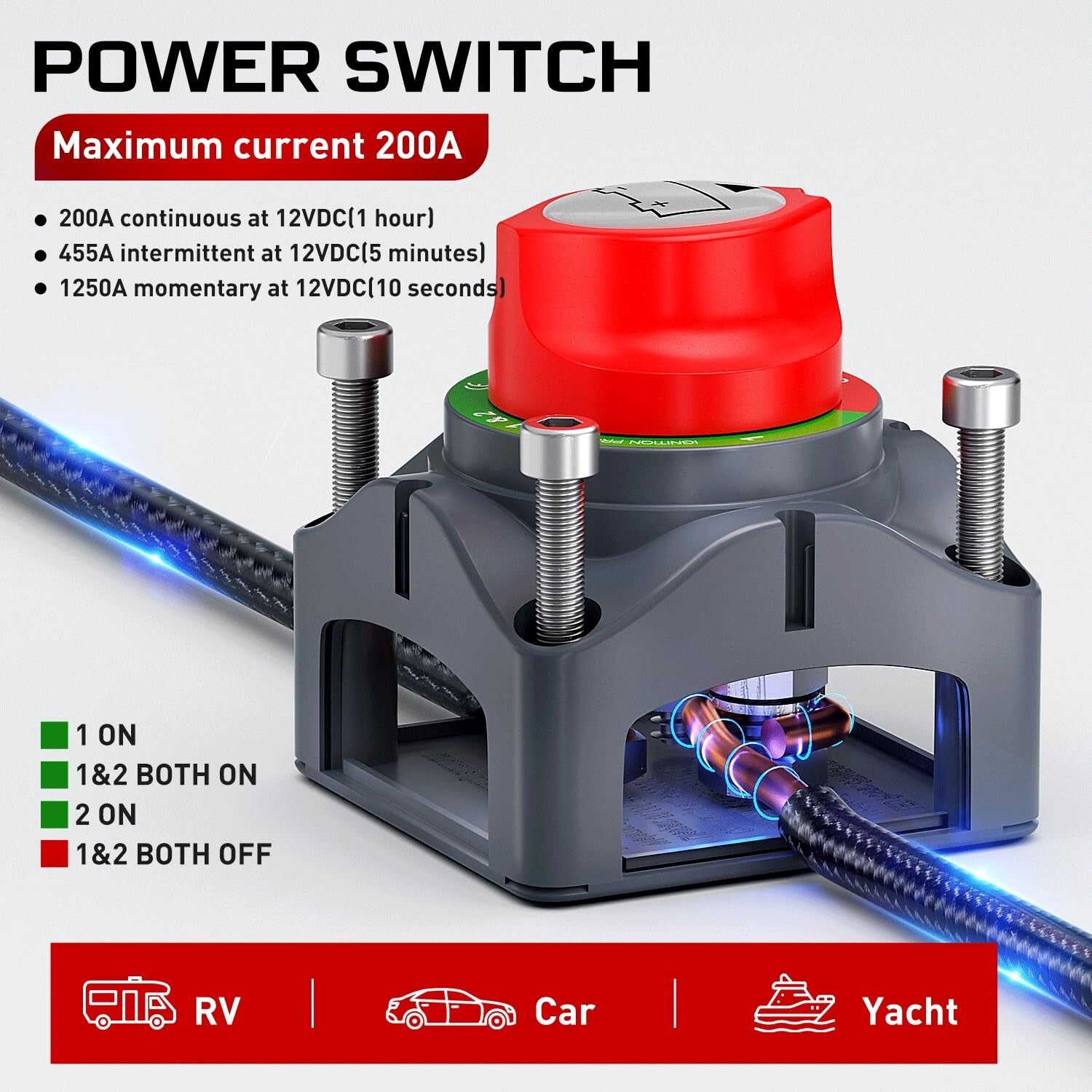

- 200A continuous at 12VDC(1 hour)
- 455A intermittent at 12VDC(5 minutes)
- 1250A momentary at 12VDC(10 seconds)
- Copper terminal stud size: 3/8" (10 mm)
Features
Well Built Heavy Duty Cut Off Switch

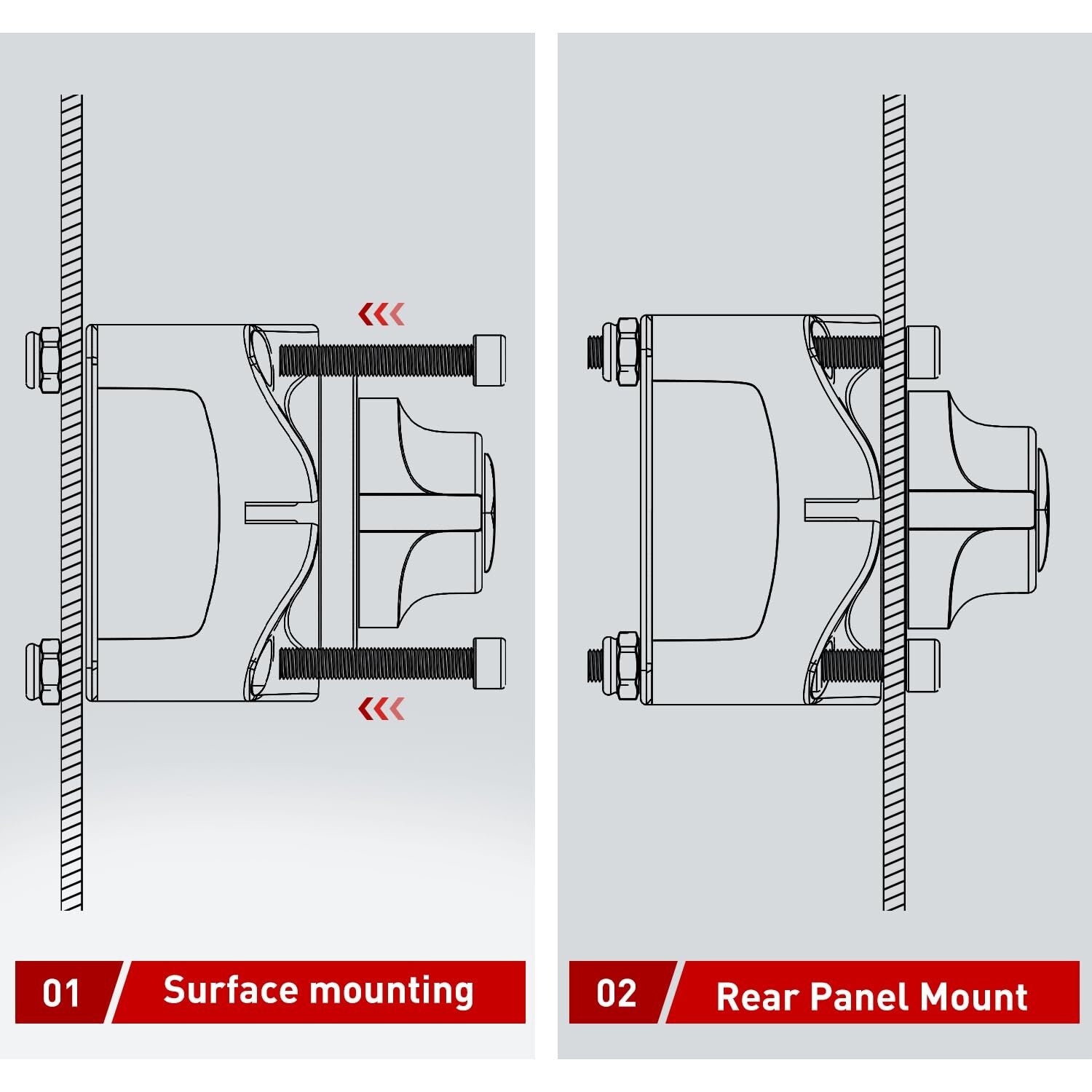

Panel-mounted switches are designed specifically for panel mount applications; Countersunk recesses for surface mount application.
ABS plastic housing and on/off switch knob
- ABS plastic housing, durable made for safety use, rear cover insulates terminals against any short circuit.
- Used for 12 - 48VDC systems to isolate and secure the electrical system.
- Can stand alone or be locked together with other switch.

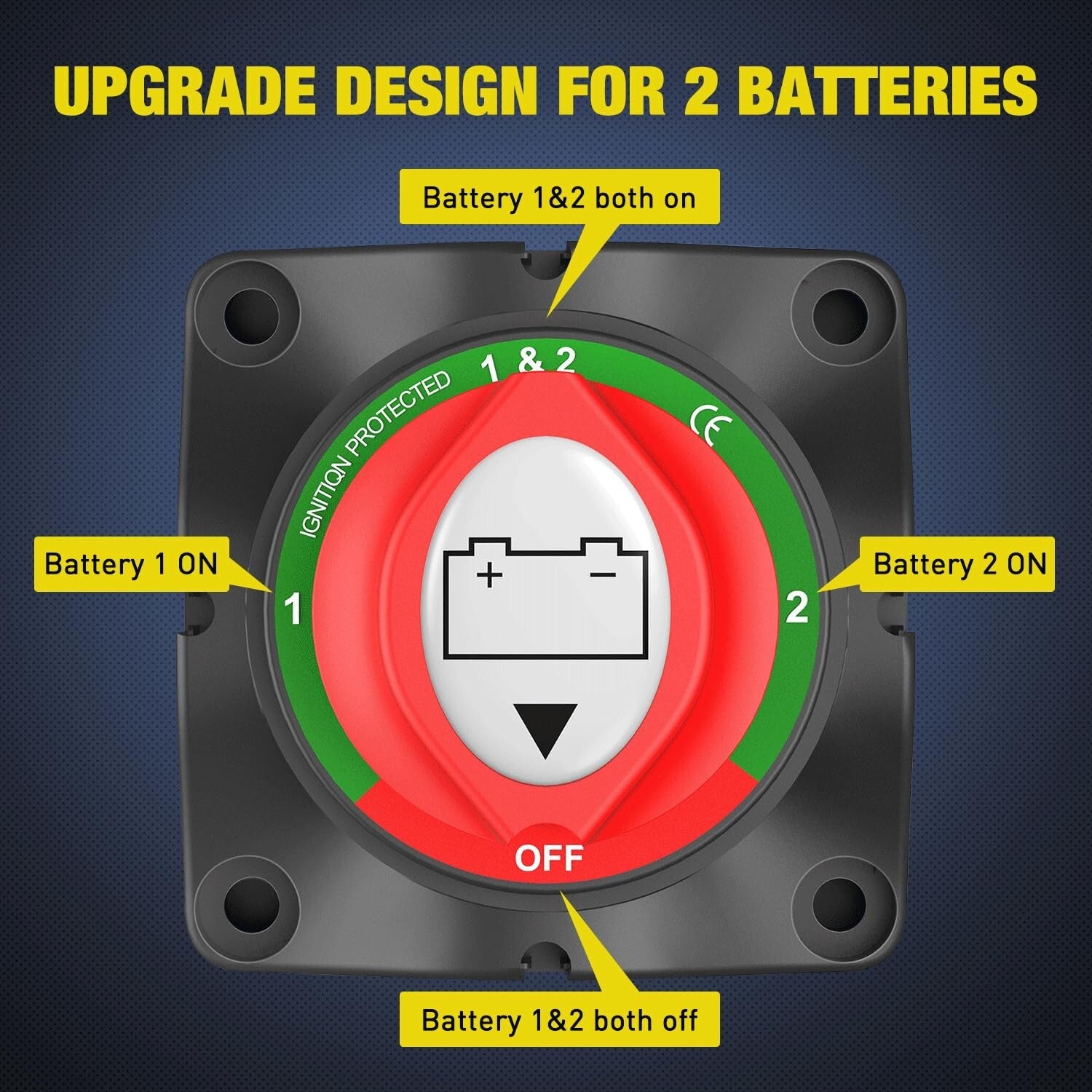

Design for 2 batteries
This switch is designed for 2 batteries. Can switch to battery 1 / battery 2 separately or both on and off. Eliminate any power from the battery when vehicle or boat is not in use, disconnects the battery safely.Avoid battery drain off.

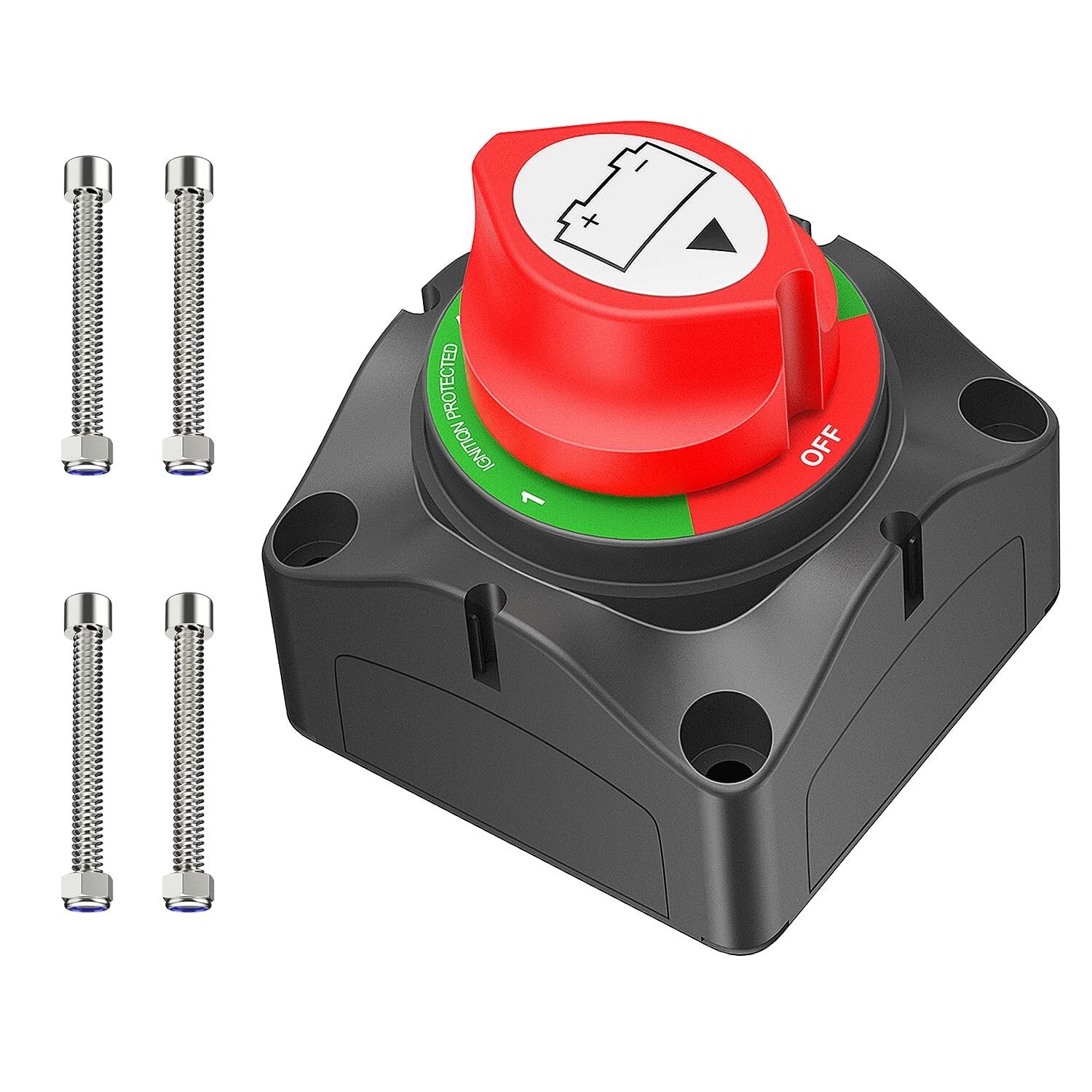

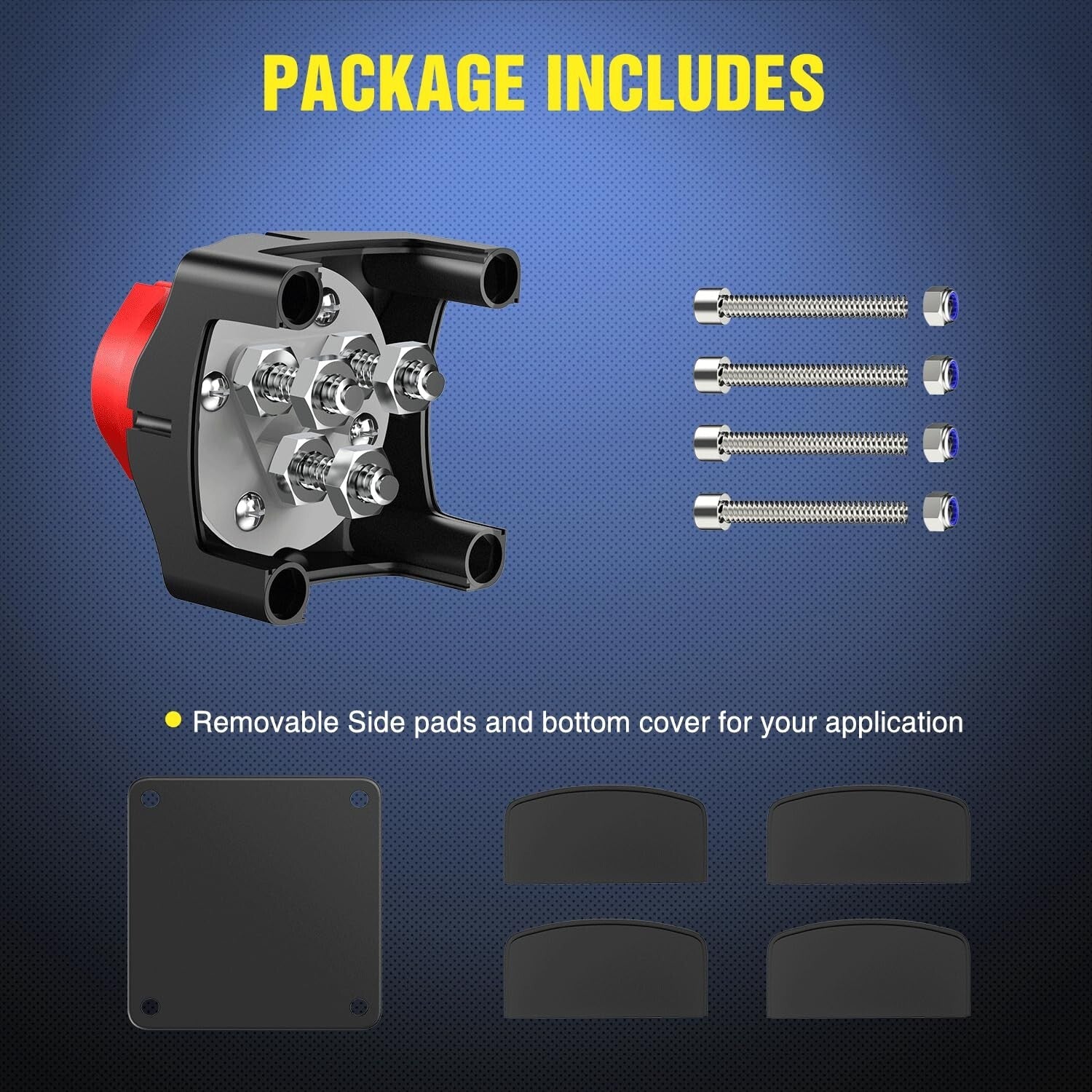

Brass Package Included:stud and nut
- 1* Battery switch
- Removable side pads and buttom cover
- Mounting bolt and screws*4
- Instructions

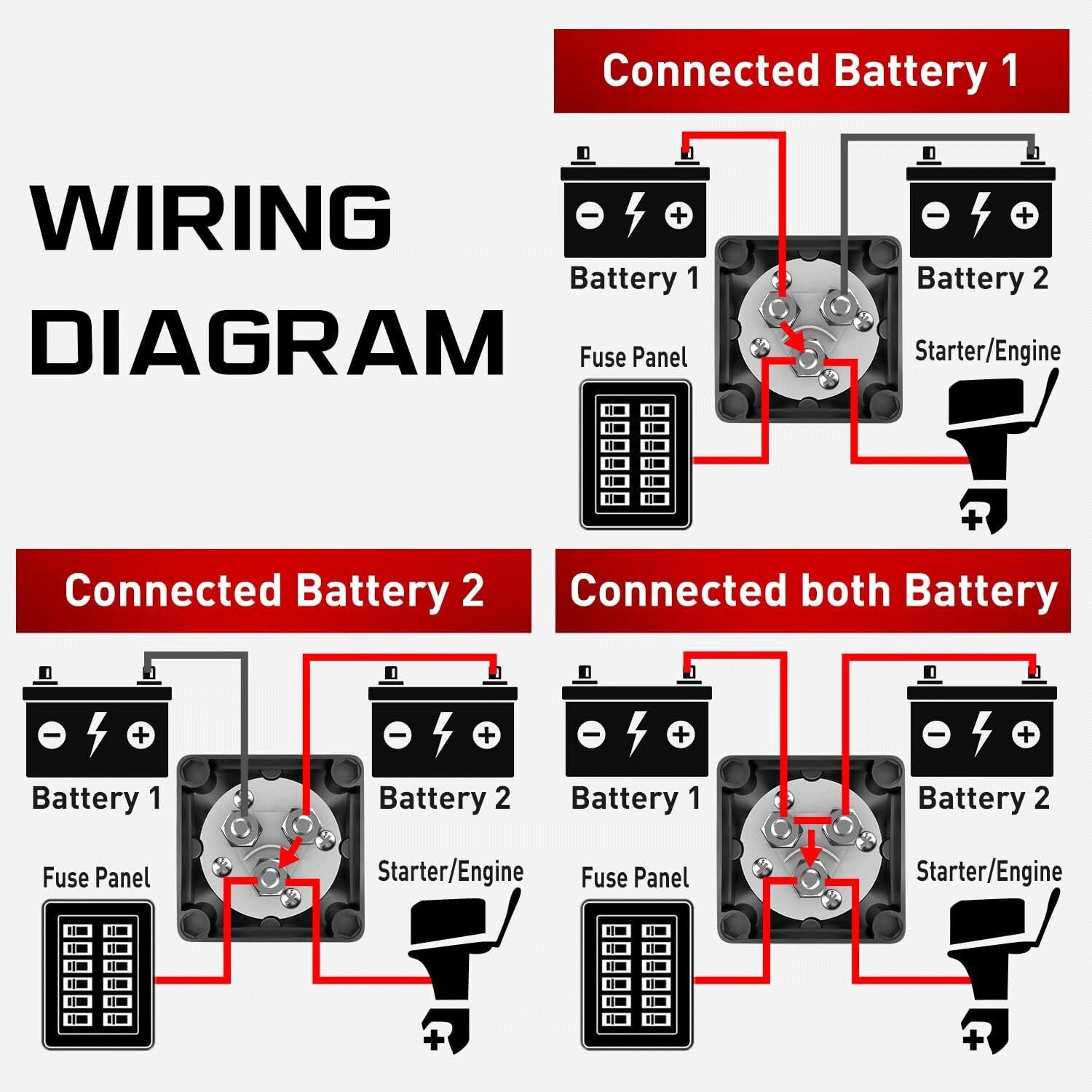

Wiring Method
Connect battery 1
Connect battery 2
Connect both Battery
